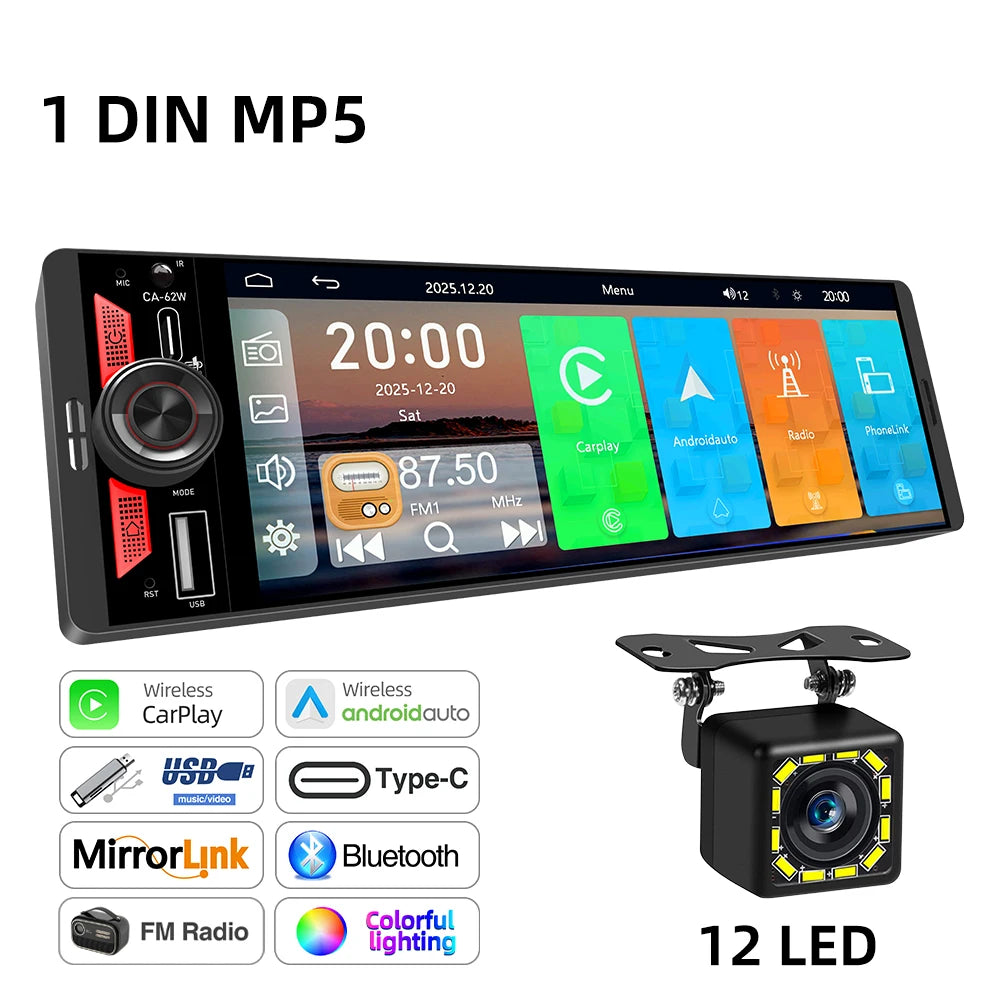

6.5 Inch 1Din IPS Screen Wireless Carplay Android Auto Airplay Car Radio MP5 Player Stereo Bluetooth FM Type-C PD3.0 Fast Charge

Specification

General
Power Supply：DC10-16V
Grounding System：Negative Ground.
Current Drain：10A(Max.)
Speaker Impedance：4 ohm per channel
Frequency Response：20Hz-20kHz
Operating Temperature：-20-+60℃
Dimensions：178mm(W)x90mm(D)x50mm(H)

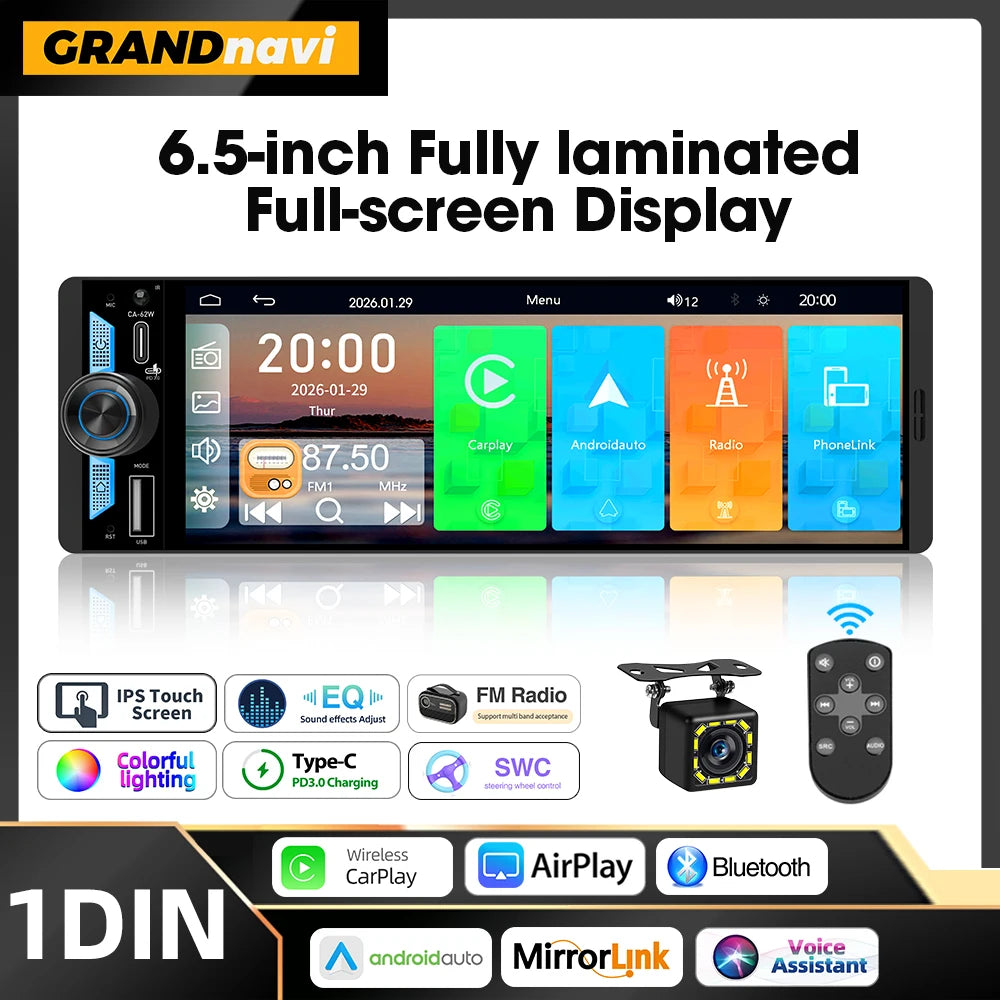

TFT Display
TFT Screen Size：6.5inch
Resolutionn：1280x452Pixels

FM Radio
Frequency Range(USA):87.5-107.9MHz
Frequency Range(Europe):87.5~108.0MHZ
Enable Sensitivity (S/N=30dB):≤15dB
SN Ratio:≥55dB
Stereo Separation:≥30dB

USB
Available audio formats：MP3, AAC, APE, FLAC
USB port type：2.0
USB maximum capacity：128GB
USB charging：Type C PD3.0 Fast charging

BLUETOOTH
Version：Bluetooth 5.0
BT profile support：A2DP, AVRCP, HFP
Range of frequency：2.4 GHz spectrum

Suitable car center console

If your car's center console matches the one shown in the picture, then your car can be equipped with our MP3 radio

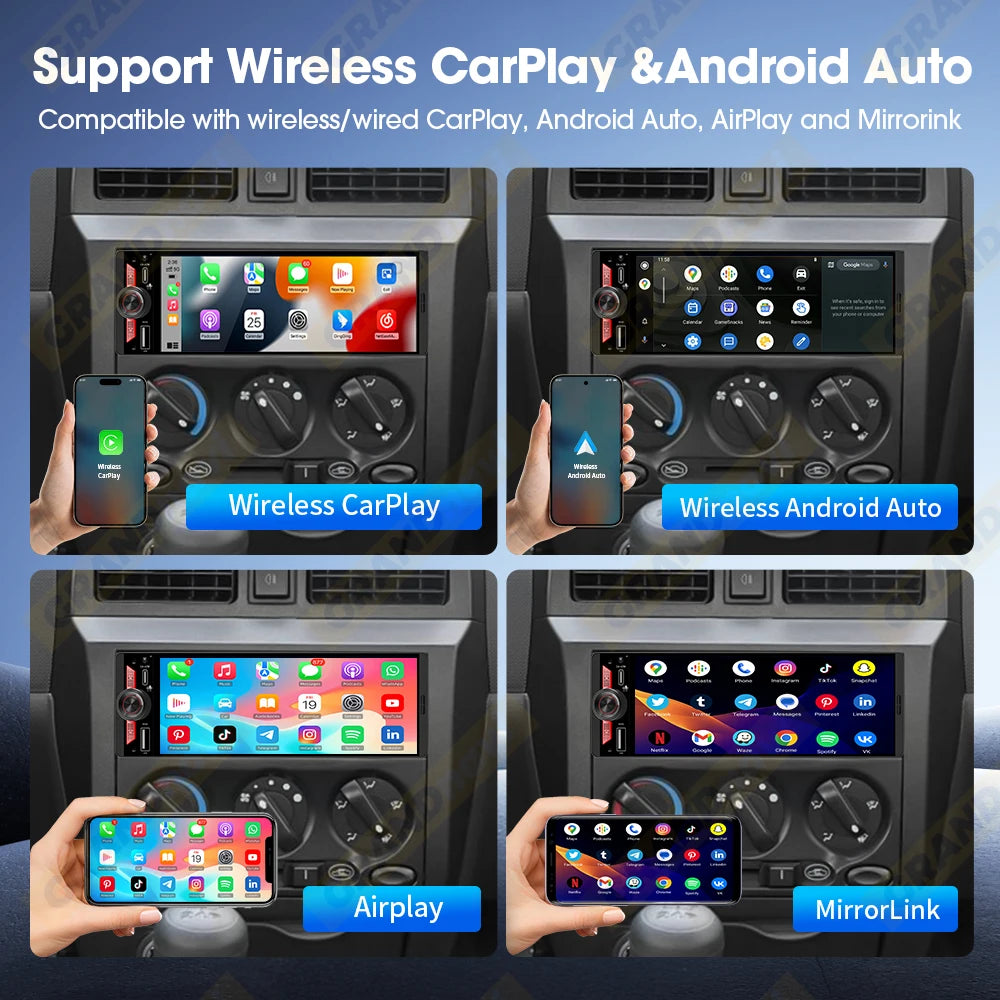

Support Wireless CarPlay &Android Auto

Compatible with wireless,wired CarPiay, Android Auto, and Minorink

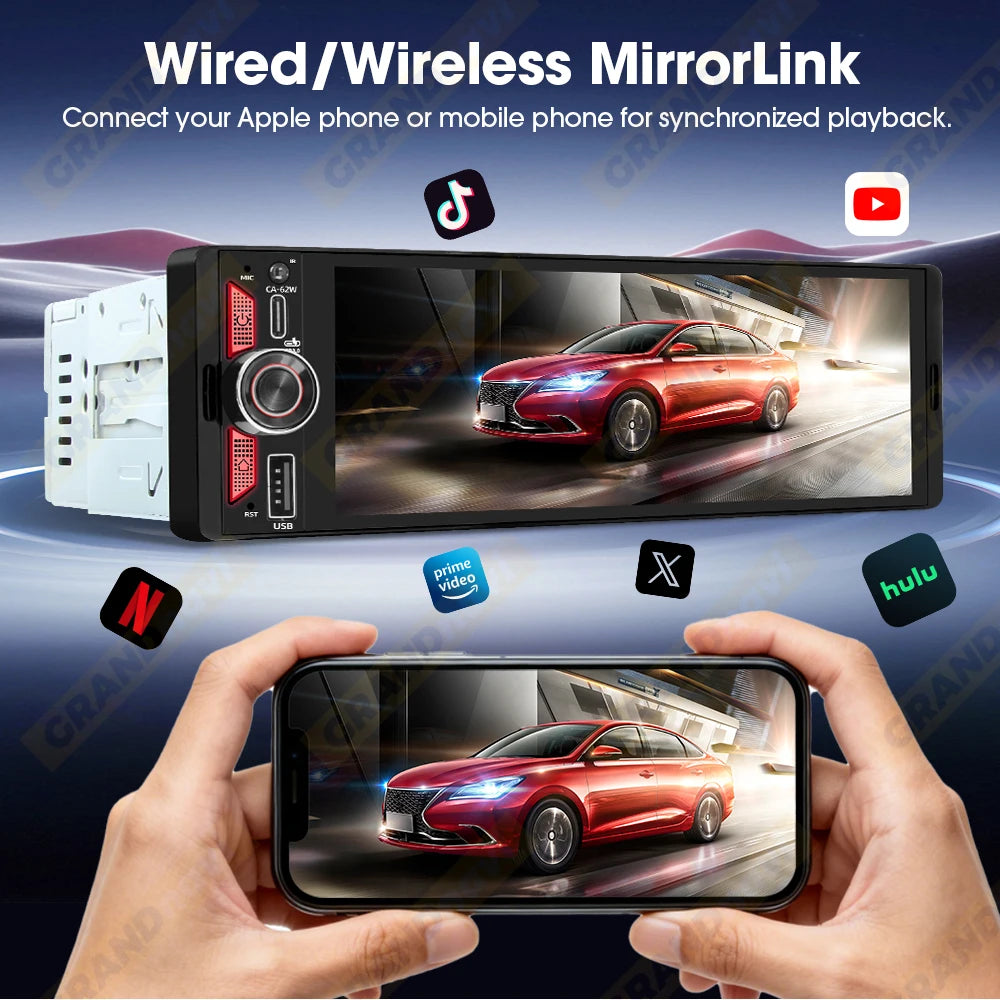

Support Wired/Wireless MirrorLink

Attention: We are unable to Mirror copyrighted APP, and some copyrighted videos cannot be played.
We apologize for any inconvenience caused！

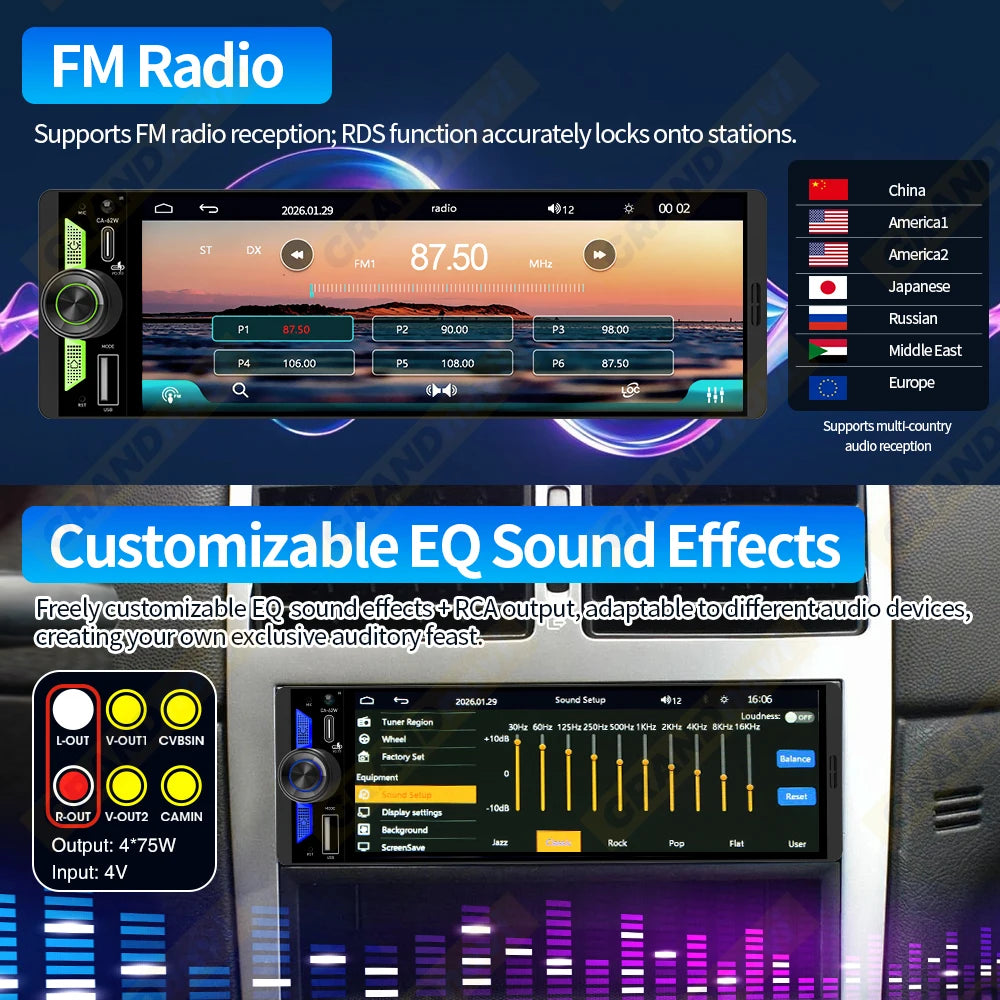

Support FM and EQ

RCA OUTPUT :4V
4*75W

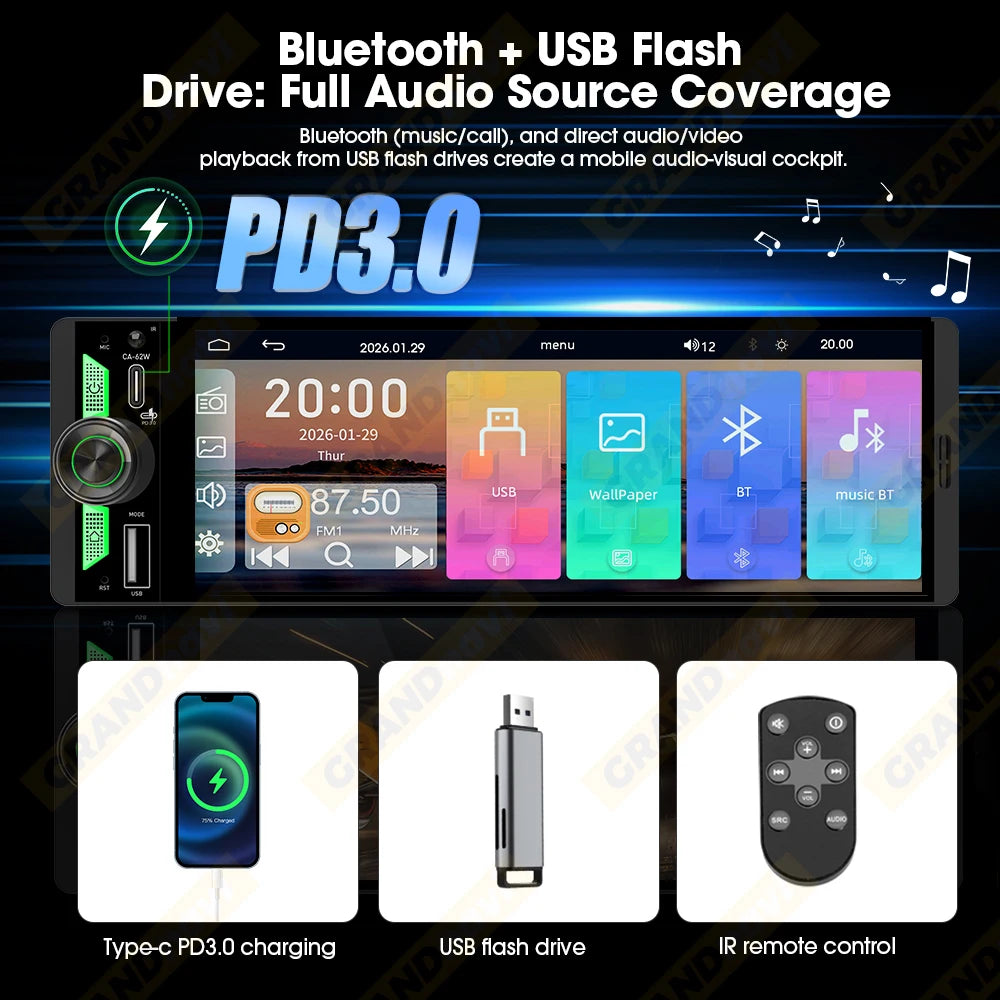

Support Bluetooth/USB,Supports Type-C PD3.0 Fast Charging

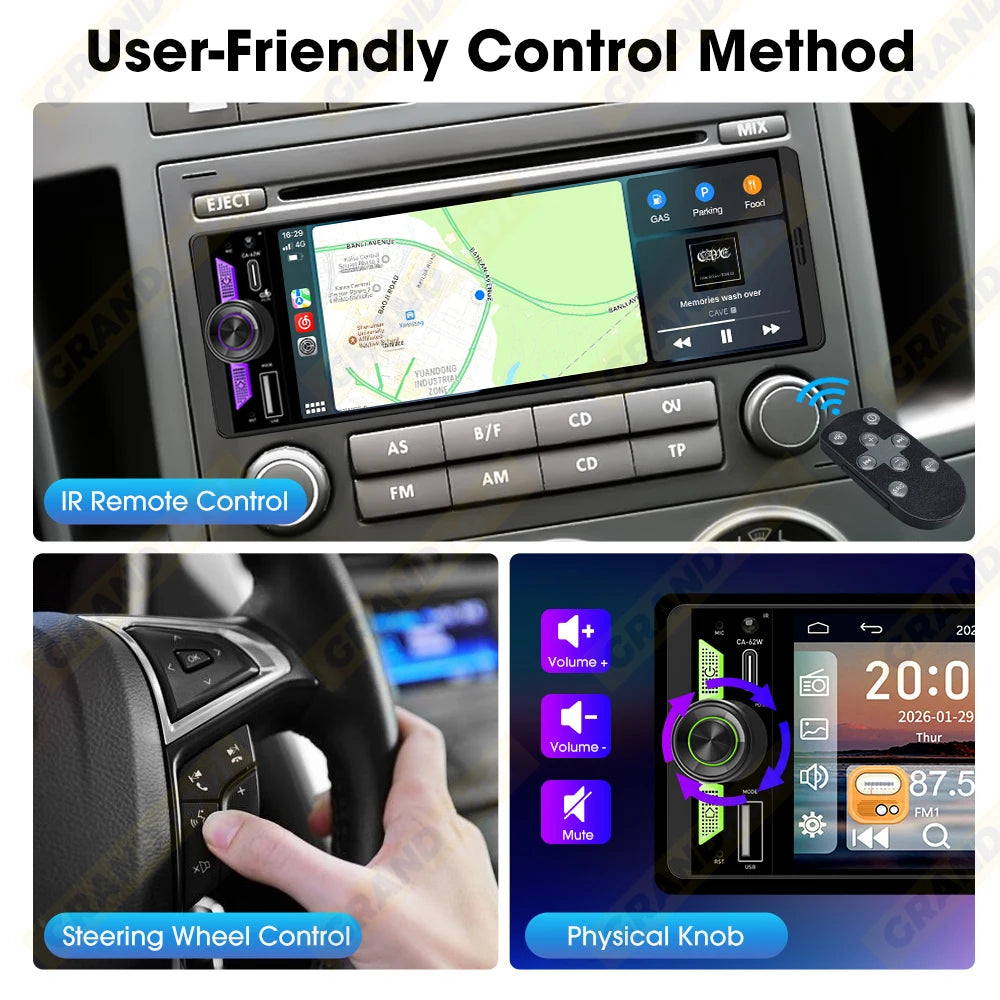

User-Friendly Control Method

Support Colorful light

Supports Multiple Languages

Support Rear Camera

How to Connect？

Please make sure connect positive pole with RED and YELLOW wire,Connect negative pole with BLACK wire!

Note：Reverse connection of positive and negative poles may cause the damage of fuse.

If so, please replace with a new fuse then connect wires again.

Product List & Size
